This 2009 BMW Mini 1.6 came in with very poor running, hunting at idle and a fault code for the Vanos inlet actuator movement. The Vanos system controls variable valve timing and the solenoids that operate it are fed by engine oil - meaning any metal debris in the oil will accumulate on the solenoid gauze and restrict it.
On inspection the inlet Vanos solenoid had already been cleaned and its code cleared. The exhaust solenoid however was completely blocked with metal filings. The gauze was full of debris and the valve movement was restricted. This guide covers diagnosis, cleaning and refitting - and what to do if it comes back.
Symptoms of a Blocked Vanos Solenoid
- Engine management light with Vanos-related fault code
- Poor idle - hunting, almost stalling
- Very rough running especially when cold
- Reluctance to rev up smoothly
- Code returns after clearing (if solenoid not cleaned)
Tools & Parts Needed
Shop Parts & Tools for This Job
As an Amazon Associate, Mr Auto Fixer earns from qualifying purchases. Prices and availability may vary.
Step-by-Step Guide

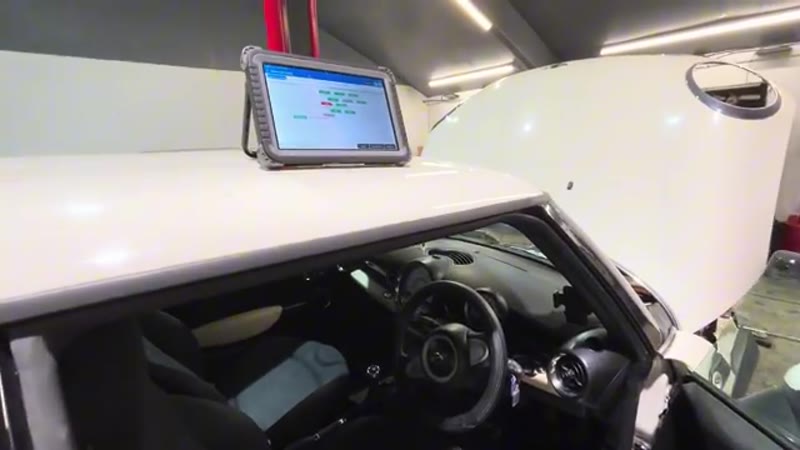

Scan for Fault Codes
Connect a diagnostic scanner and read the fault codes. On this Mini the code was for the Vanos inlet actuator movement. Note all codes - there may be multiple Vanos codes present. Once noted, do not clear them yet - confirm the fault first.

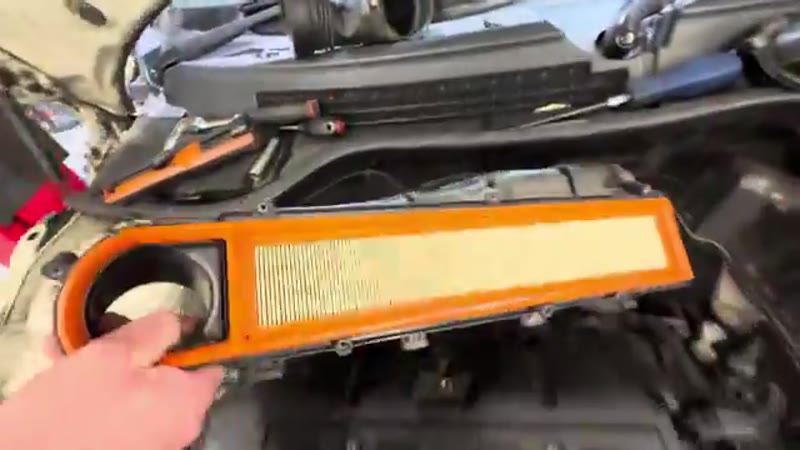

Remove the Front Airbox Section
The front section of the airbox is held by T25 Torx screws and one 10mm bolt. Remove these and lift the front section of the airbox clear. For the main airbox body: undo the 10mm bolt, then lift the airbox up and out of its locating point.

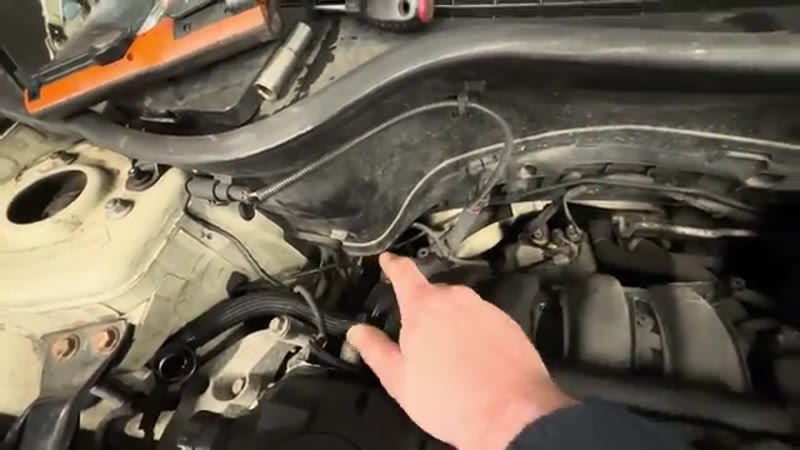

Remove the Throttle Body Elbow & Breather Pipe
Undo the Jubilee clip on the elbow pipe that connects to the throttle body and pull it off. Remove the small breather pipe from the same area. This improves access to the Vanos solenoid on the side of the engine.

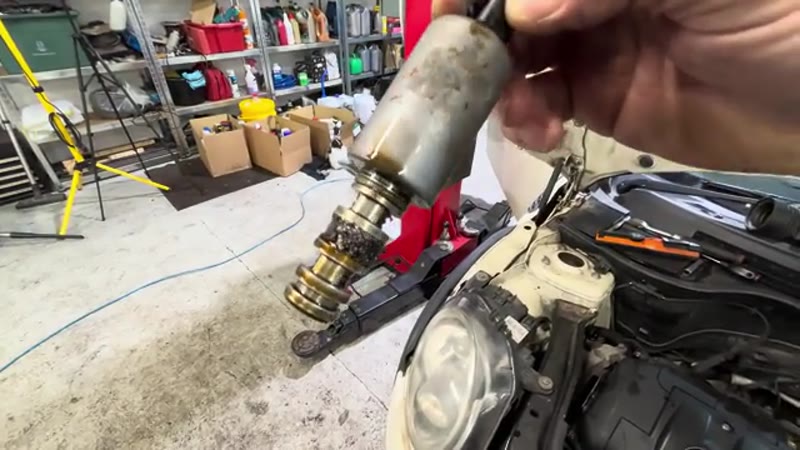

Unplug & Remove the Vanos Solenoid
You will see both Vanos solenoids - an exhaust one and an inlet one on the cylinder head. Unplug the electrical connector from the solenoid you are removing. Undo the single 10mm bolt on top of it. Wiggle and pull the solenoid out. On this one the gauze filter was completely coated in metal filings.

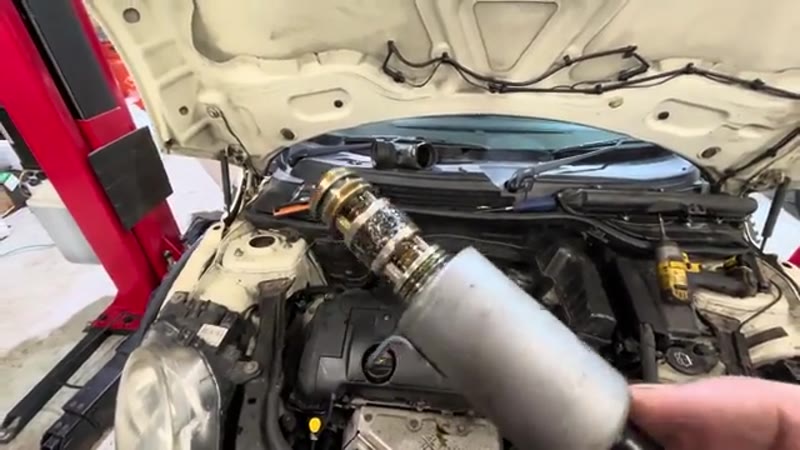

Clean the Solenoid
Spray brake cleaner thoroughly onto the gauze end of the solenoid, working it into the mesh. Work the valve pin with a small screwdriver to help free any debris. Continue cleaning until the gauze is clear and the valve moves freely. Allow to dry fully before refitting.

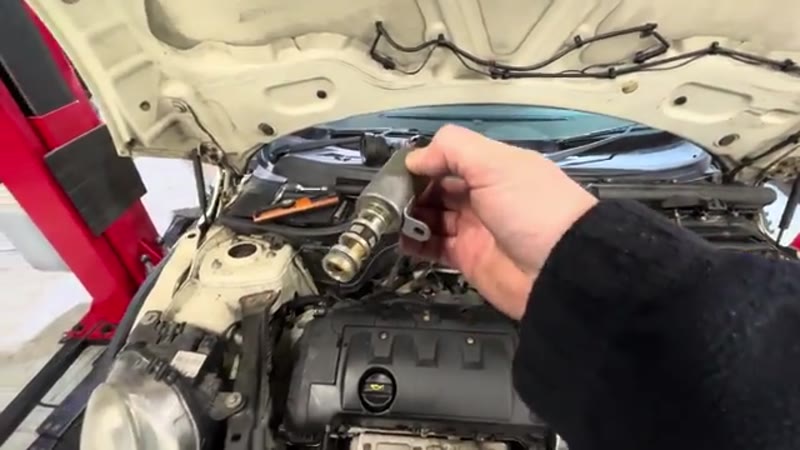

Refit, Clear Codes & Test
Push the clean solenoid back into position and refit the 10mm bolt. Reconnect the electrical plug. Refit the throttle body elbow, breather pipe and airbox in reverse order. Start the engine and clear the fault codes with the scanner. Rev the engine and let it warm up - on this Mini the hunting idle immediately improved and the code did not return.
Want this guide offline - and 15 more like it?
Our PDF guide collection covers servicing, fault codes, buying a used car and more. Written by a qualified mechanic. Download once, use forever - no ads, no internet needed.
Why Cleaning Works - the Sludge Story
The Vanos solenoid rarely wears out; it suffocates. Its job is to meter pressurised oil to the cam phaser through ports covered by a fine mesh screen, and that screen is the finest filter in the whole engine - finer than the main oil filter. Every mile of stretched oil intervals, short cold trips and cheap oil deposits varnish and sludge onto it, and once the mesh blinds over, the solenoid cannot flow enough oil to move the cam on command. The rough idle and hesitation that follow feel like a dying engine, but the component underneath is usually healthy - which is why a careful clean cures so many of these cases outright, for the cost of a can of brake cleaner.
Cleaning is the honest first move because it is also a diagnosis: if symptoms vanish for months after a clean, you have confirmed the fault and its cause. If they return within days, the solenoid's internals are worn and the replacement guide is your next stop - £20–£60 for the Pierburg part.
What the Alternatives Cost
| Route | Typical price | Notes |
|---|---|---|
| Garage diagnosis + new solenoids | £150–£300 | Many go straight to parts without trying a clean |
| DIY replacement | £20–£60 | If cleaning does not hold |
| DIY clean (this guide) | £5–£10 | Brake cleaner, gloves, 30-60 minutes |
Typical UK prices. The clean-first route risks nothing: the solenoid comes out the same way for cleaning as for replacement, so a failed clean costs only the hour.
Common Mistakes When Cleaning a Vanos Solenoid
- Blasting the electrical connector with cleaner. Solvent belongs on the mesh screens and spool end, not in the coil and connector. Flooding the electrics can finish off a solenoid the sludge had only winded.
- Poking the mesh with anything metal. The screen is the component. A pick or wire tears it, and a torn screen lets debris straight into the spool - clean with solvent spray and soft brush only.
- Losing or doubling the O-rings. Check the bore: an O-ring left behind and a new solenoid seated on top of it gives a pressure leak with the exact symptoms you started with.
- Cleaning the solenoid but keeping the dirty oil. The sludge came from the sump. An oil and filter change is part of this fix, not an optional extra - skip it and you will be cleaning again by winter.
- Judging the result on a five-minute idle. Clear the codes and drive a full warm cycle including some load. Vanos symptoms are temperature-dependent, and a proper test drive is the only verdict that counts.
If the Clean Does Not Hold
A clean that fails immediately, or a fault that returns every few weeks, tells you something specific each time. Instant return: worn solenoid spool - replace it. Return after weeks or months: the engine is re-sludging the screen, which points at the oil itself - check for short-trip-only driving, overdue changes, or the wrong spec. Symptoms that never fully left even briefly: look past the solenoid at oil level and pressure, the cam phaser, and on N12/N14 engines the timing chain tensioner, whose cold-start rattle is a different and more urgent conversation. The symptom finder sorts those paths, and the solenoid replacement guide picks up where this one ends.
